Shimano丨 Talica and Speedmaster T-Bar Handle Replacement Kit

This Shimano Official T-Bar Handle Replacement Kit is designed for Talica and Speedmaster reels, allowing you to gain more leverage and improved ergonomics when retrieving big fish. This kit contains original Shimano parts and is easy to install, simply requiring a screw driver to change out your smaller handle. You will need all these parts to change the handle.  The original parts won't allow for the larger handle to be installed.  They look similar to your original parts, but there are differences in the dimensions and the length of the small parts in the kit.  Enjoy increased comfort and control while reeling in a catch.

Shimano T-Bar Handle Upgrade Fits:

Speedmaster II

• SPM12II
• SPM16II
• SPM20II
• SPM25II

Talica ll

• TAC12II
• TAC16II
• TAC20II
• TAC25II

The T-shaped knob has a 9 degree offset to increase grip and torque.  With a 110mm arm length the Shimano T-Bar Handle Upgrade allows for more power while cranking on a fish.  A great upgrade for your jigging setup, making for more comfort and ease while fishing vertically and winching big fish out of the depths.

When fishing long hours grinding large jigs, the T-Bar Handle's comfortable grip will help relieve cramping.  When that "cow" tuna does bite, you'll be ready for the long battle.

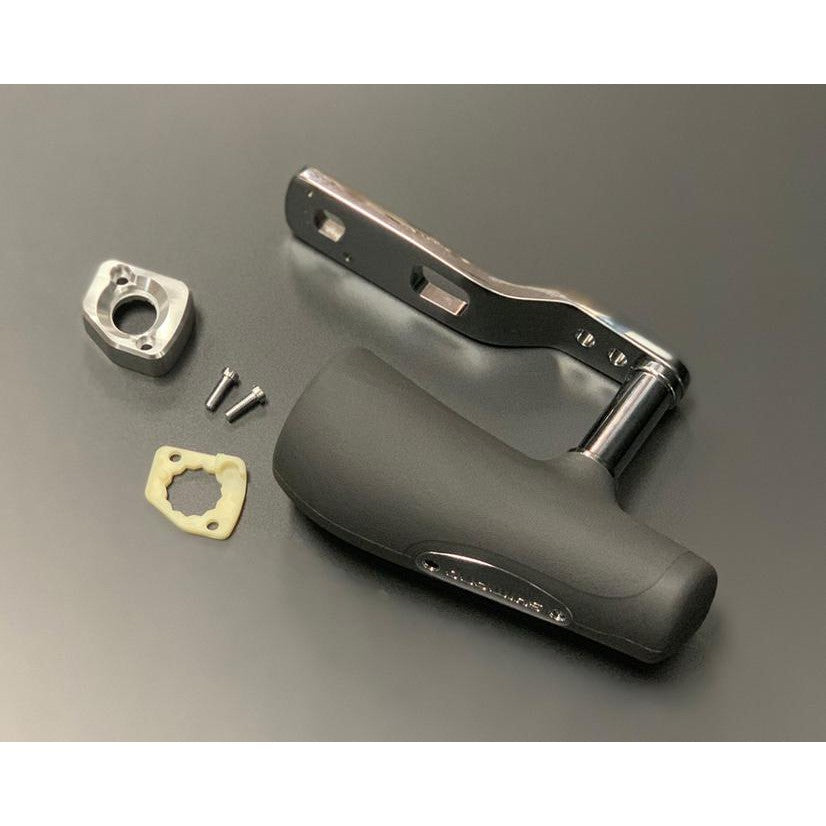

Includes:

 (1) T-Bar Handle

 (1) Plastic Spacer

 (1) Metal Cover Plate

 (2) Phillips Screws

All Shimano OEM Parts

Specifications:

  Arm Length: 110mm / 4.33in

  Handle Length: 102mm / 4.02in

  Handle width: 72mm / 2.83in

  Handle top-side Diameter: 25mm / 0.98in

  Handle bottom-side Diameter: 36mm / 1.42in

  Handle Weight: 7.3oz

Installation:

First, you must remove the two Phillips screws on each side of the 2-speed button. Gently remove the switch cover, small plastic spacer with switch (Leave switch and spring in the plastic spacer, for reverence) and then remove handle.

You will have to transfer the switch and spring from the old plastic washer to the new one. (Look at old one for reference, only goes one way).

Then slide handle over the post, followed by the new plastic spacer and original switch, then the new cover plate, tighten with new longer screws (Blue theadlocker 242 recommended).
